DIN 4150-3 is one of the most widely referenced standards in Europe for assessing the effects of vibration on buildings. Originally developed in Germany, it is frequently applied on international construction projects when structural vibration risk must be evaluated in a clear and defensible manner.
This article explains what DIN 4150-3 covers, how vibration limits are defined, how they are applied in practice, and how they should be interpreted within a broader monitoring strategy.
What Is DIN 4150-3?
DIN 4150-3 is part of the DIN 4150 series, which addresses vibration in the built environment. Part 3 specifically deals with the effects of vibration on structures, focusing on the prevention of damage to buildings caused by construction activities, traffic, blasting, or industrial operations.
Unlike general measurement standards, DIN 4150-3 provides explicit vibration limit values that can be used as reference criteria when evaluating structural risk.
It is commonly used in:
- urban construction projects,
- demolition and piling works,
- infrastructure upgrades near existing buildings,
- projects involving historic or sensitive structures.
Although it is a German standard, its technical framework is often applied beyond Germany due to its clarity and practicality.
Which Vibration Parameter Does DIN 4150-3 Use?
DIN 4150-3 primarily uses Peak Particle Velocity (PPV), expressed in millimetres per second (mm/s), as the key indicator for structural damage risk.
PPV is selected because it correlates well with dynamic stresses induced in building elements. The standard defines allowable PPV values depending on:
- the type of building,
- the building condition,
- the vibration frequency.
Proper measurement of PPV requires suitable instrumentation and methodology, as described in technical guidance documents and in broader discussions on measuring vibrations on construction sites.
Vibration Limit Values in DIN 4150-3
DIN 4150-3 defines different PPV limit values according to building category and vibration frequency range.
For guidance purposes, the following ranges are typically referenced:
- Industrial or commercial buildings: between 20 and 50 mm/s
- Residential buildings: generally between 5 and 20 mm/s
- Particularly sensitive or historic buildings: often around 3 to 10 mm/s
These values are frequency-dependent and must be interpreted in accordance with the detailed tables provided in the standard.
It is important to understand that DIN 4150-3 aims to prevent structural damage, not to address human perception or comfort. Complaints from occupants may occur at vibration levels well below structural damage thresholds.
Frequency Dependency and Structural Behaviour
One of the strengths of DIN 4150-3 is that it recognises the influence of vibration frequency. Structural response varies depending on whether vibrations occur at low, medium, or higher frequencies.
Lower-frequency vibrations may result in larger structural displacements, while higher-frequency vibrations may affect specific components differently. For this reason, applying a single fixed PPV limit without considering frequency content can lead to incorrect conclusions.
Frequency analysis therefore plays an important role when interpreting compliance with DIN 4150-3.
How DIN 4150-3 Is Applied on Construction Sites
In practice, DIN 4150-3 is typically used in conjunction with structured construction vibration monitoring. The standard provides the reference thresholds, while monitoring systems supply the measurement data required to assess compliance.
The process generally involves:
- Identifying the building category and sensitivity.
- Defining applicable PPV thresholds based on the standard.
- Installing appropriate sensors at representative structural locations.
- Continuously or periodically measuring vibration levels.
- Comparing recorded PPV values against DIN limits.
This structured approach allows project teams to demonstrate due diligence and manage vibration risks transparently.
DIN 4150-3 and Baseline Measurements
Although DIN 4150-3 defines vibration limits, it does not replace the need for baseline measurements. Recording pre-construction vibration levels is considered best practice in urban environments, especially where background vibrations already exist.
Baseline data helps distinguish between:
- pre-existing conditions,
- construction-induced vibration effects,
- external influences such as traffic.
Baseline measurement strengthens the credibility of any later claim of compliance or non-compliance with DIN limits.
Common Misinterpretations of DIN 4150-3
Several recurring mistakes occur when applying DIN 4150-3 in practice.
First, the standard is sometimes treated as a universal rule without considering building condition. In reality, structural integrity, age, and construction type significantly influence acceptable vibration levels.
Second, practitioners may compare raw vibration data directly with limit values without ensuring proper measurement configuration. Sensor placement, calibration, and frequency filtering must be aligned with recognised measurement principles.
Third, DIN 4150-3 addresses structural damage, not cosmetic cracking or occupant discomfort. Misunderstanding this distinction can lead to confusion in communication with stakeholders.
A structured interpretation framework, supported by clear documentation and reporting, is essential to avoid these pitfalls.
Relationship with Other European Standards
DIN 4150-3 is often applied alongside broader vibration standards. For example, methodological guidance for measurement may be drawn from international or national standards, while DIN provides structural limit values.
A comprehensive understanding of vibration standards and regulations in Europe is therefore necessary when selecting reference criteria for a project.
In multinational projects, DIN 4150-3 may be used even outside Germany because of its well-defined damage thresholds and technical clarity.
Integrating DIN 4150-3 into a Monitoring Strategy
Applying DIN 4150-3 effectively requires more than consulting a table of limit values. It must be integrated into a structured monitoring and risk management framework.
This includes:
- defining alert thresholds aligned with DIN limits,
- selecting appropriate sensors and acquisition systems,
- ensuring traceable data storage,
- documenting exceedances and corrective actions.

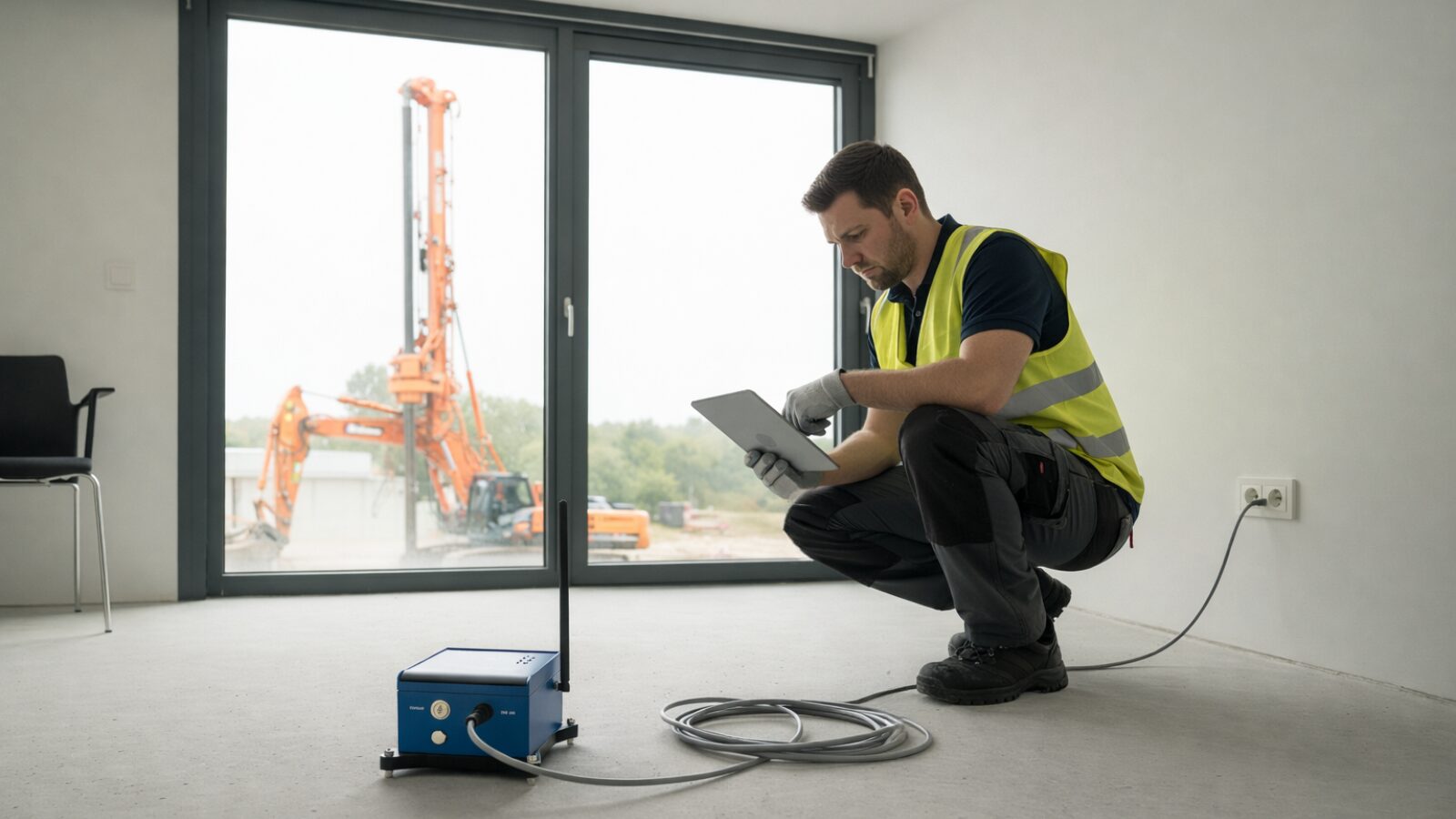

Modern autonomous monitoring solutions, such as TREMOR, are frequently used on construction sites to capture PPV values in real time and compare them against predefined thresholds derived from DIN 4150-3.
However, technology alone is not sufficient. Complex cases may require specialised engineering services to interpret results, assess structural sensitivity, and advise on mitigation measures.
From Compliance to Risk Management
DIN 4150-3 provides a clear technical foundation for evaluating structural vibration risk. When properly applied, it enables objective assessment, transparent communication, and defensible decision-making.
Yet the standard should not be viewed as a checklist. It becomes truly effective when integrated with accurate measurement practices, continuous monitoring where necessary, and expert interpretation within the broader context of construction vibration control.
