Recovib Structural Health Sensors

Sensors really made for permanent outdoor structural monitoring

The Structural Health Monitoring sensors combine a 2-axis accelerometer with a temperature sensor. Their enhanced internal surge protection and electromagnetic interference immunity make them particularly suitable for the permanent monitoring of outdoor tall structures. The Structural Health Monitoring sensor can perform measurements in extreme conditions ranging from -40°C to +85°C. They are of course dust and watertight to IP66. We have a proven track record of several thousands of such sensors operating reliably around the world.

Request a quote

2 axes + temperature

Measurements down to DC

Robustness

Lightning protection

Short-term or permanent monitoring

Built to last

Keeping tall structures safe, year after year

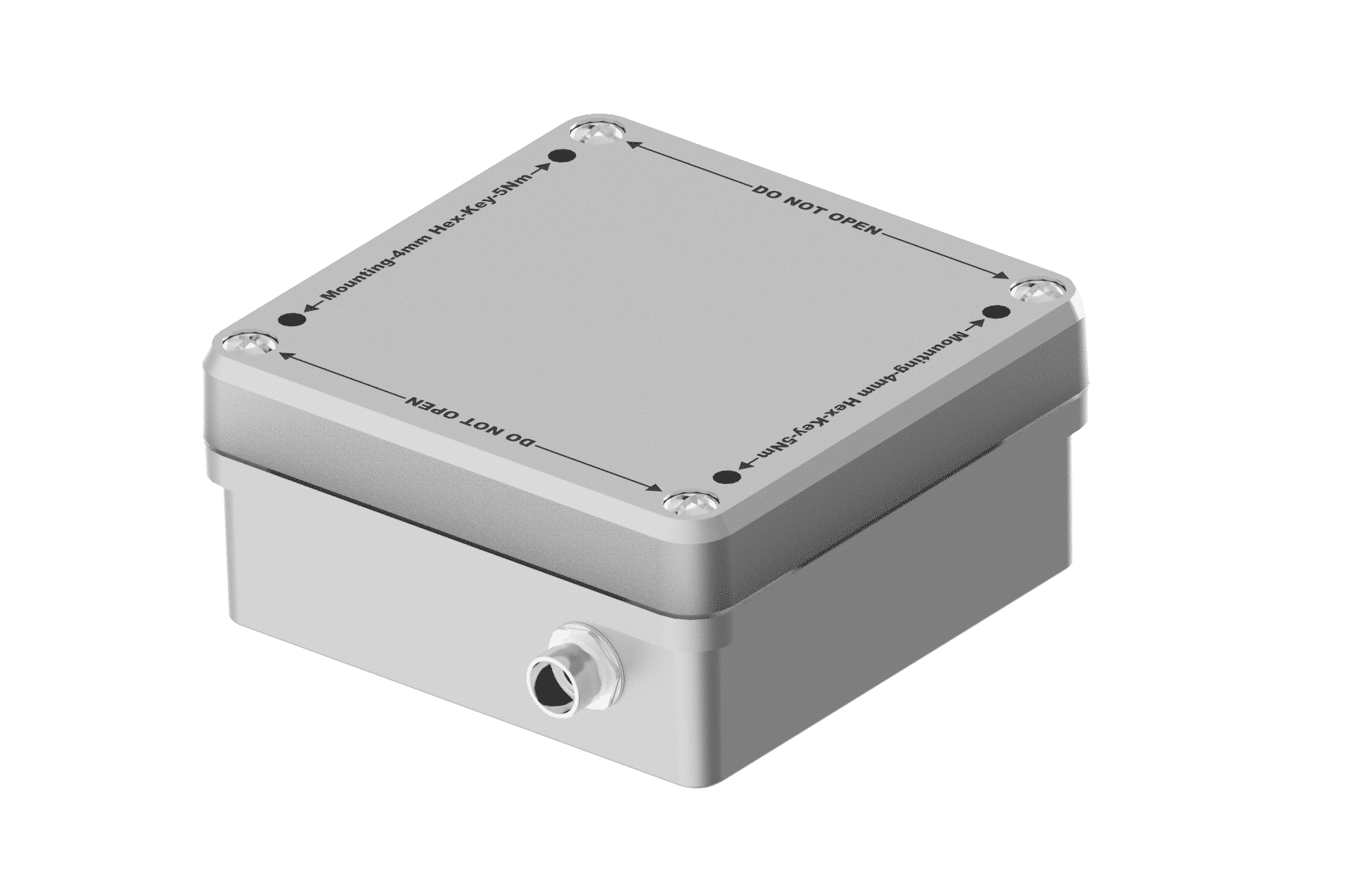

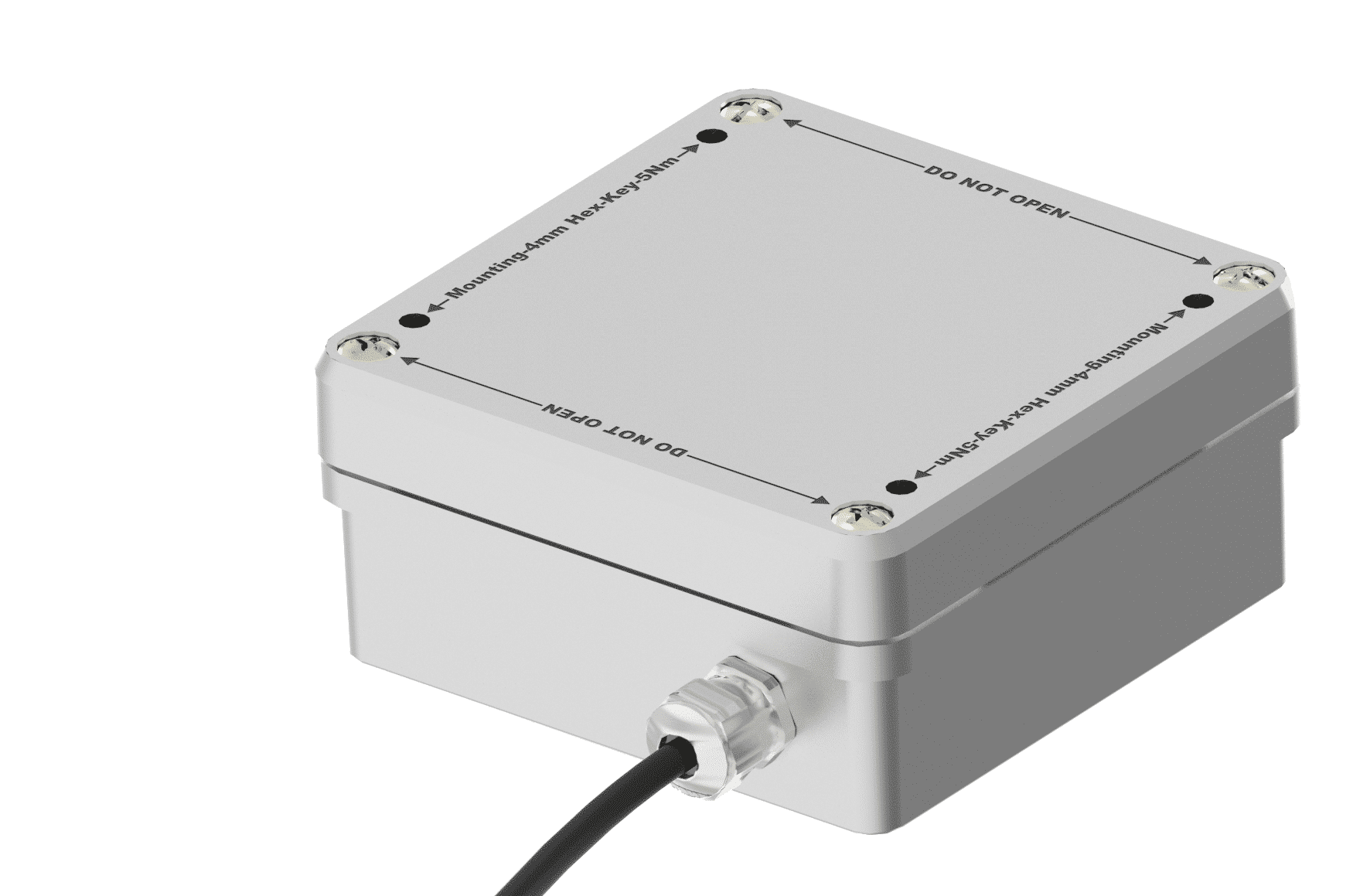

Structural Health Monitoring sensor

A 2-axis accelerometer with an embedded temperature sensor, built for permanent outdoor installation on tall structures, with long cable runs and lightning protection included. It can be built around either a standard accelerometer or a high-resolution accelerometer.

Specifications

Measuring range of acceleration	±5 g or ±6 g
Measuring range of temperature	-40°C to +85°C
Bandwidth	From DC
Output	4-20 mA current loop
Mounting	Vertical or horizontal
Protection	Embedded lightning protection
Protection grade	IP66

Structural Health Monitoring accelerometer sensor — Structural Health Sensor

Structural Health Sensors brochure

Structural_Health_Sensors_EN-v1p0 Request a quote

Typical applications

Software

Connect, analyse and monitor from anywhere

The Structural Health Sensors connect directly to a Recovib Monitor acquisition system. From there you can analyse your measurements on site with the Recovib Suite software, or rely on the Recovib.io cloud platform for remote, round-the-clock monitoring.
